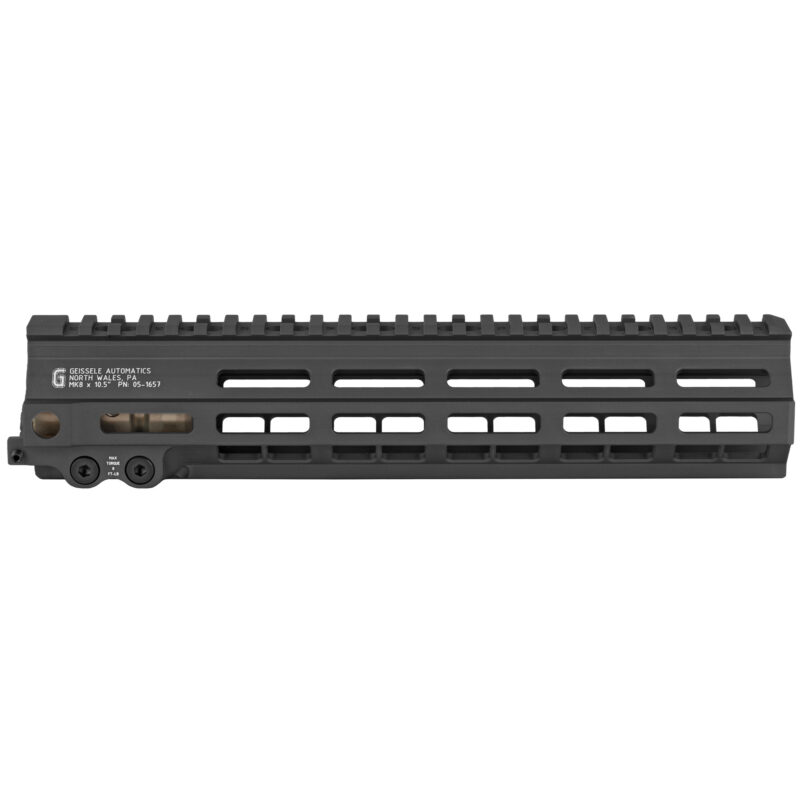

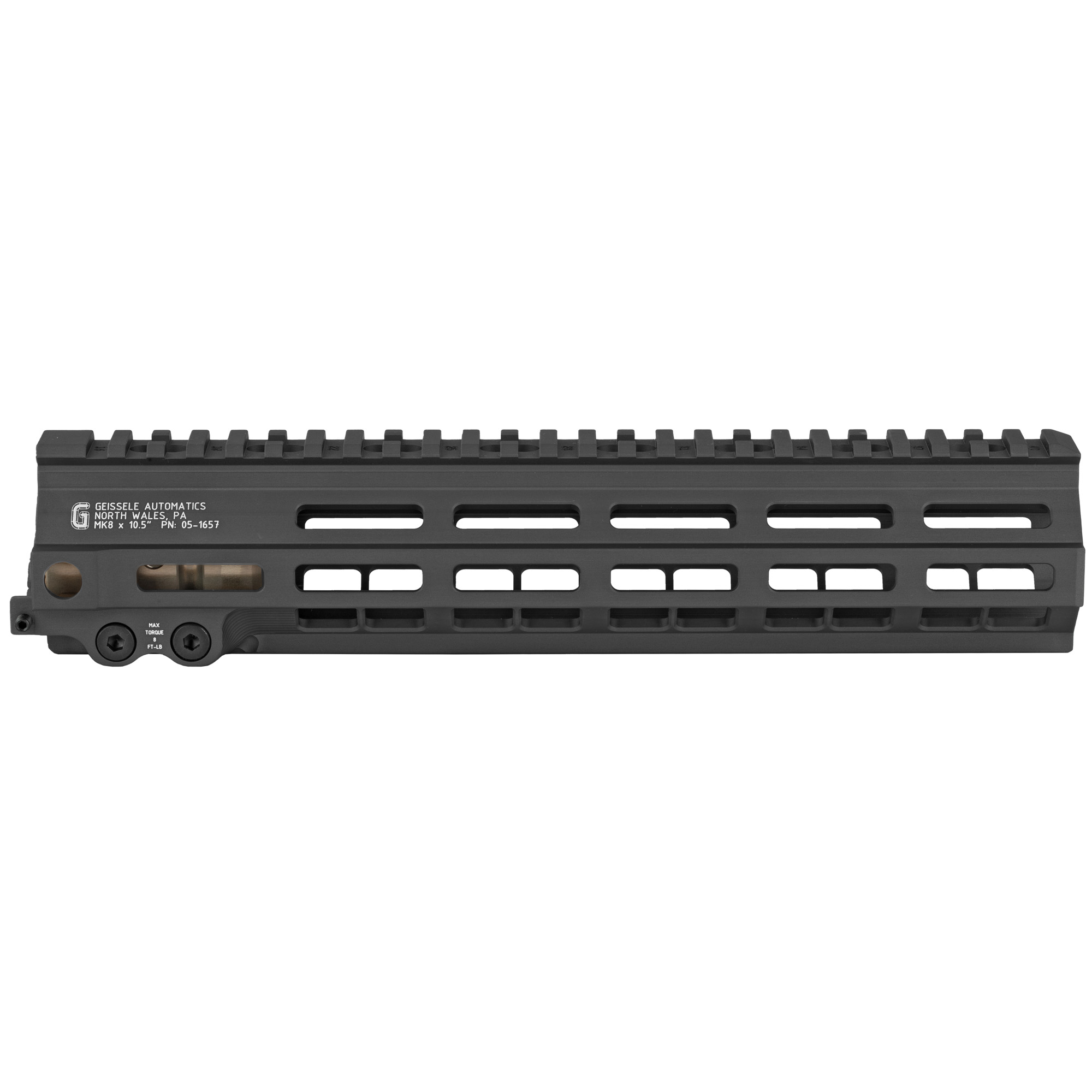

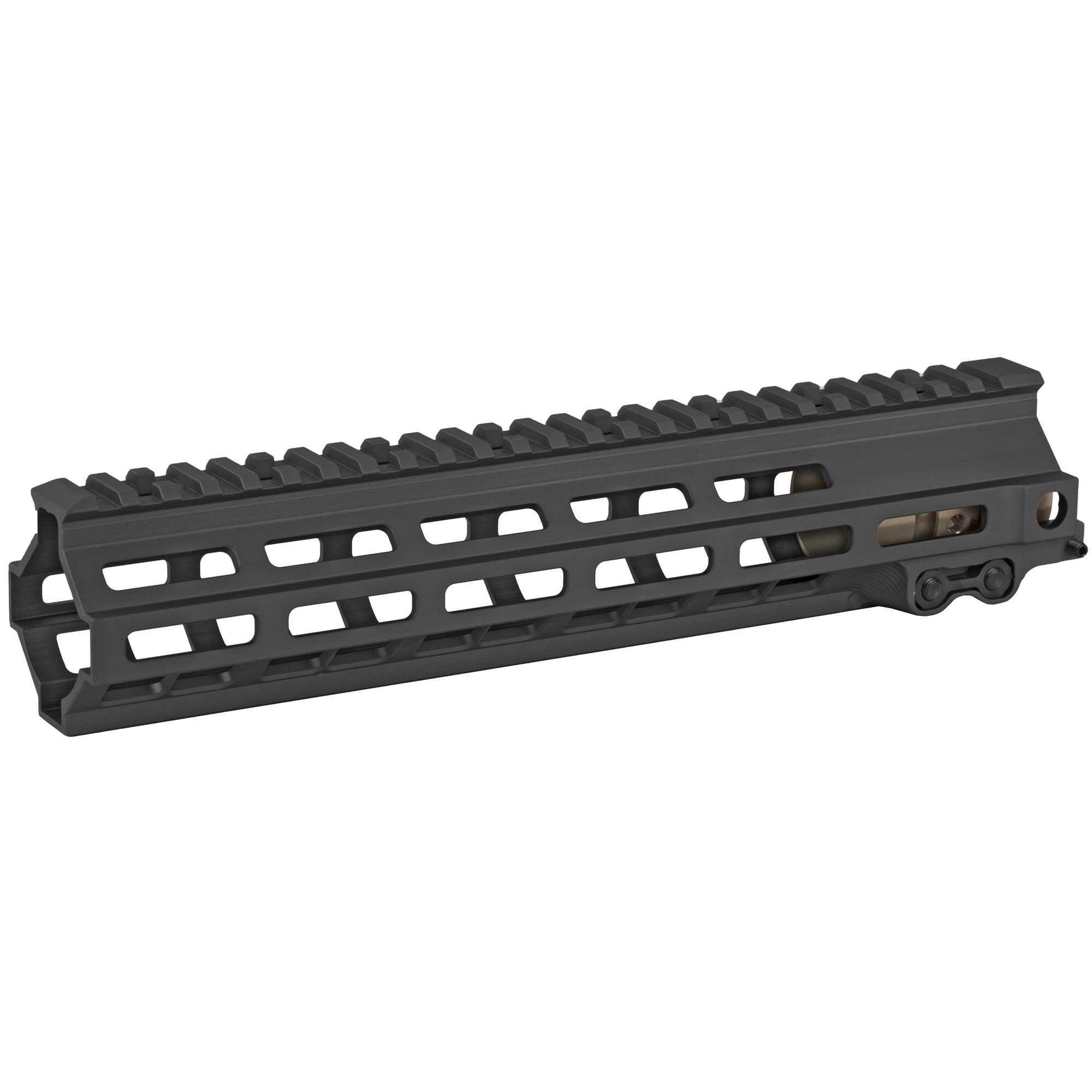

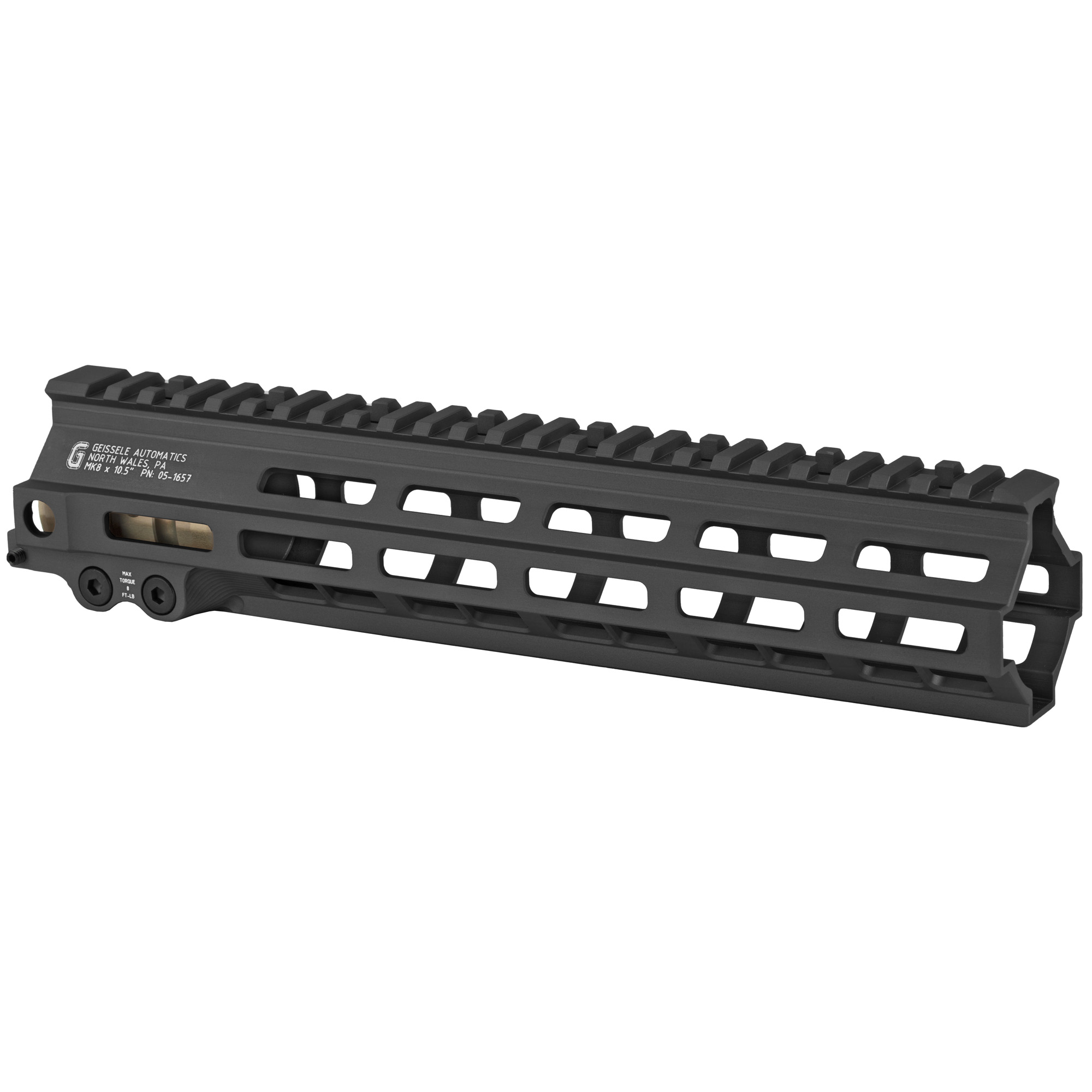

Geissele Automatics, MK8, Super Modular Rail, Handguard, 10.5″, M-LOK
$300.00 Add to cart

Geissele Automatics, MK8, Super Modular Rail, Handguard, 10.5″, M-LOK

$300.00

In stock

Want a discount? Become a member!

There’s a saying we follow around here, “Buy once, cry once” and it’s true about anything stamped with the Geissele name. Geissele undoubtedly pumps out some of the highest quality firearms parts in the industry.

The Super Modular Rail (SMR) MK8 M-LOK™ is Geissele’s ultra-modular model. The SMR MK8 is one of the first rails available to utilize the Magpul M-LOK technology. These rails are designed to give the user full modularity while maintaining a strong and rigid platform. Maximum venting at the lower 45° quadrants creates maximum heat dissipation and also dramatically reduces the rail’s overall weight. Utilizing Magpul’s M-LOK technology at the 3, 6, and 9 o’clock positions, as well as the upper 45° quadrants. The SMR MK8 is both versatile and modular, allowing the user to tailor their platform to his or her unique needs.

The SMR MK8 also features Geissele’s proprietary 2.25″ long barrel nut. This increases the surface contact where the rail interfaces with the receiver and creates a platform that can be trusted to be straight and true the entire length of the free float rail. This increases accuracy and zero repeatability during disassembly and reassembly when performing maintenance.

NOTE: If this is your first time purchasing a Geissele Automatics Rail, you will need to purchase a barrel nut wrench.

HEIGHT:   2.3″
COLOR:   Black or DDC
MATERIAL:   6061-T6
FINISH:   Type-3 Hardcoat Anodize
AVAILABLE LENGTHS:   9.3″, 10.5″, 13.5″, 15″
INNER DIAMETER:   1.35″
OUTER DIAMETER (DAQ*):   2.11″
SMR MK8 9.3″ WEIGHT:   8.4oz (10.3oz w/ barrel nut)
SMR MK8 10.5″ WEIGHT:   9.9oz (12oz w/ barrel nut)
SMR MK8 13.5″ WEIGHT:   10.8oz (13.1oz w/ barrel nut)
SMR MK8 15″ WEIGHT:   12.4oz (14.3oz w/ barrel nut)

Additional information

Manufacturer

Color

Material

Aluminum – 6061 T6

Platform

AR15
